Sliger Trailer

Below are pictures of a finished "dresser" area of a horse trailer. This trailer has a 5 ft. short wall. Rader Trim insulated, covered the ceiling in the horse area, covered the floor, wired for 12 volt lights, built cabinets, and installed a cowboy shower.

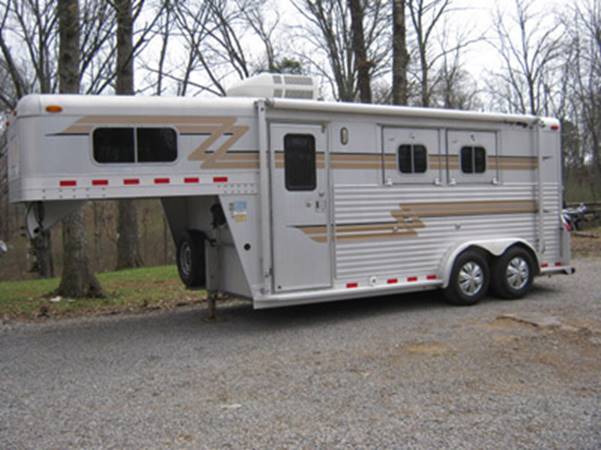

Four Star 2 horse slant load

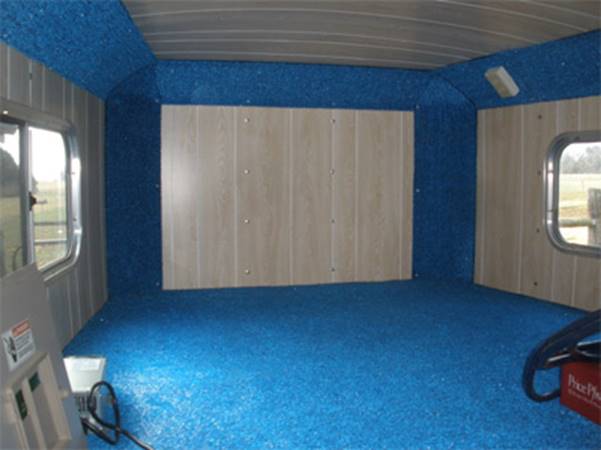

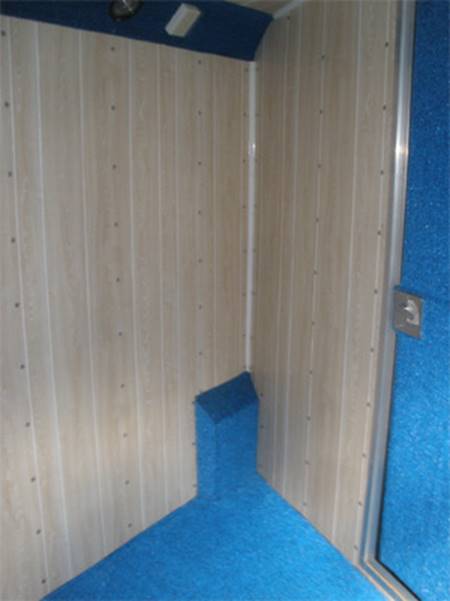

Nose area before (Wall covering, Ceiling & Carpet was not done by Rader Trim)

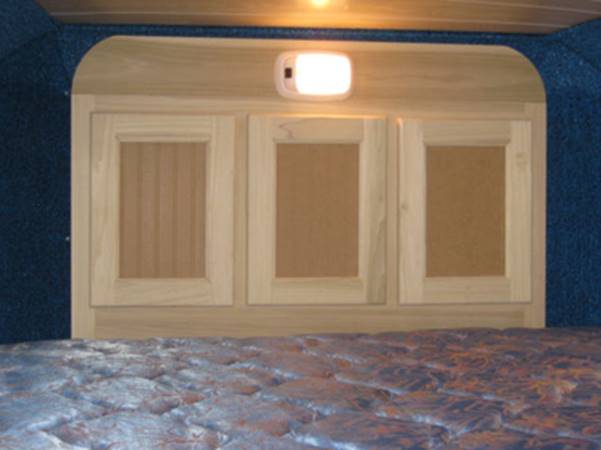

Nose cabinet. Doors are recessed panel with bead board panel.

Cabinets are left unpainted – customer will paint cabinets themselves.

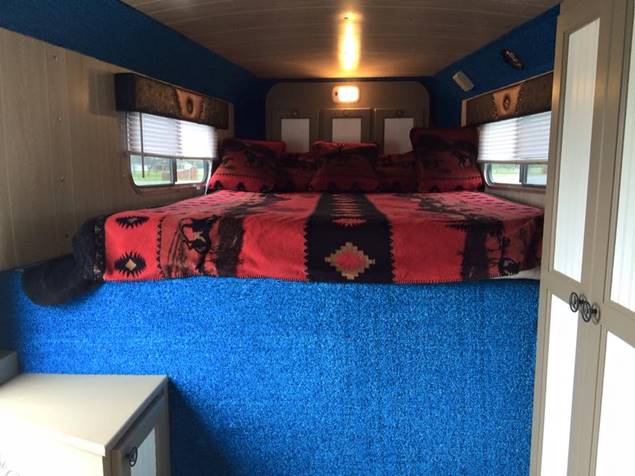

After customer painted cabinets

Back of long wall before

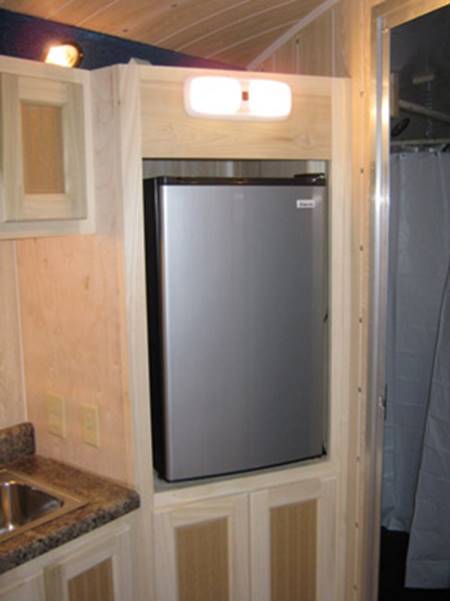

Back of long wall after. Frig. Cabinet sets at an angle from base cabinet.

All cabinets are made of poplar wood.

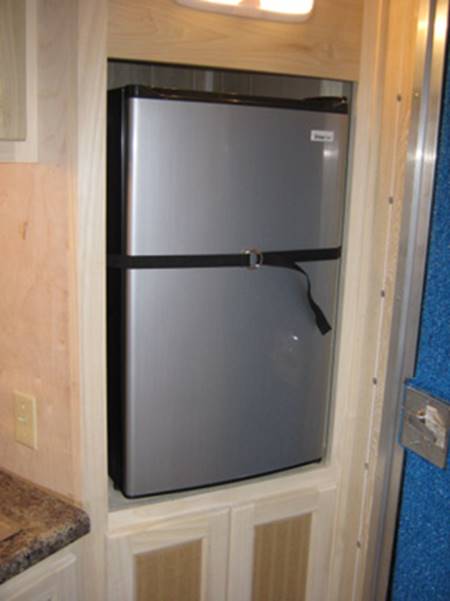

Straps hold frig while in transit.

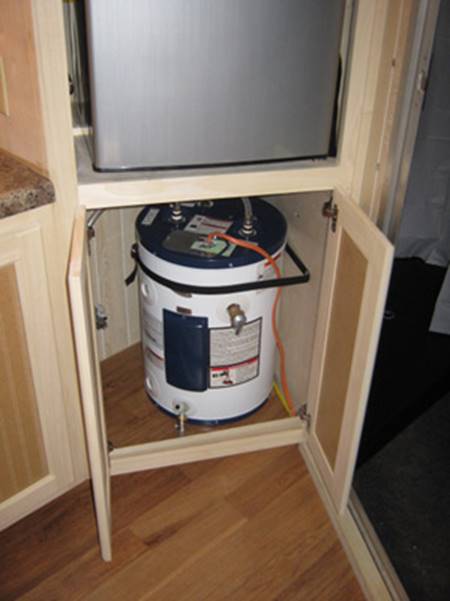

10 gallon hot water heater, water inlet and winter drain all under the frig cabinet.

Front end of long wall before

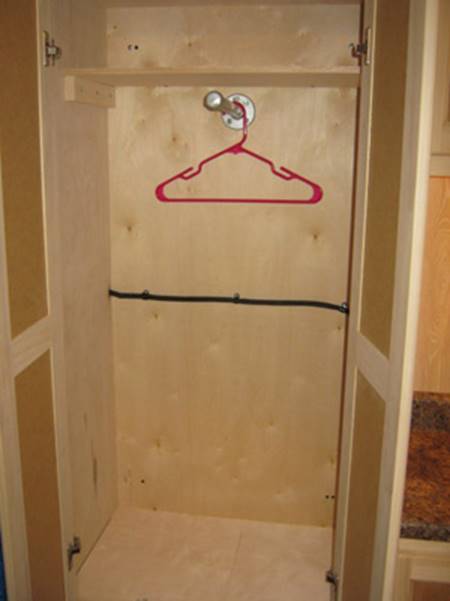

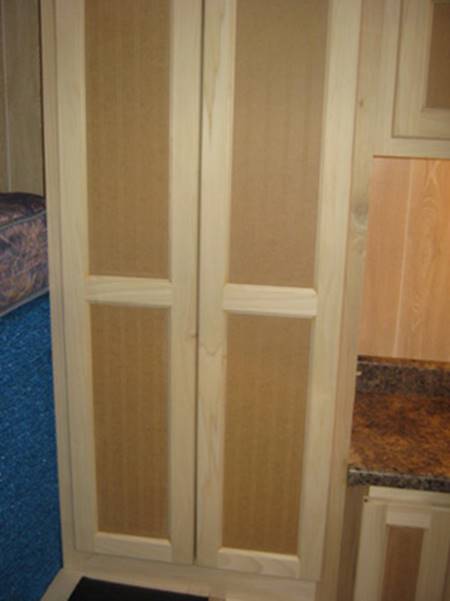

Closet at front end of long wall

Since cabinets are 18” deep, this type of closet rod is used. Shelf at top of closet

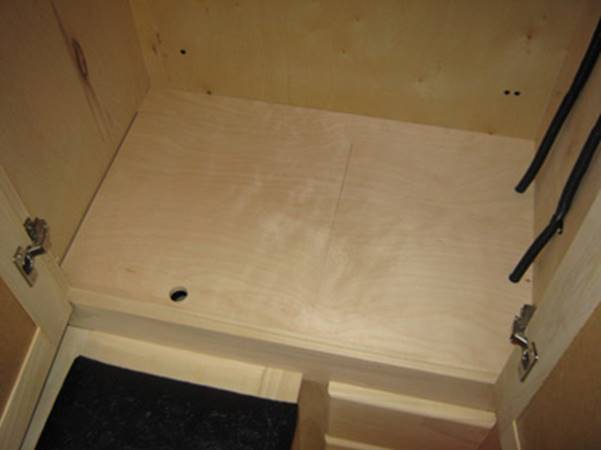

Door at bottom of closet for access to additional storage

Door at bottom of closet for access to additional storage

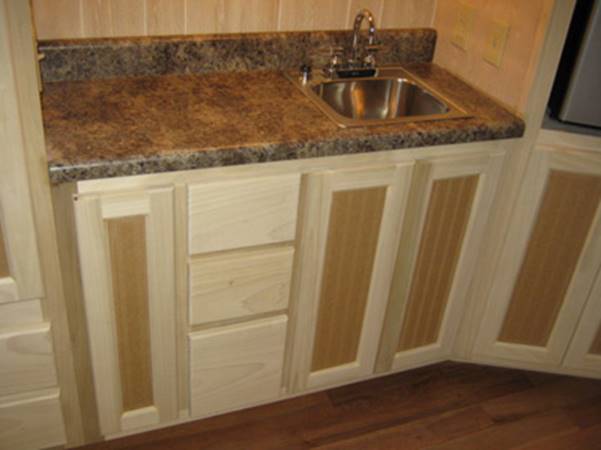

Base cabinet with sink.

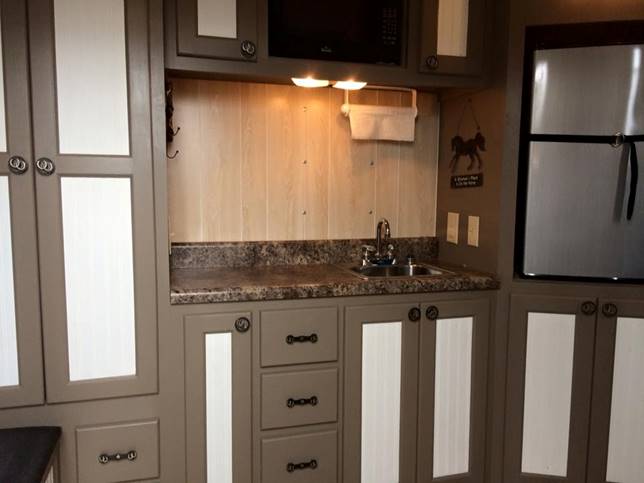

After customer painted cabinet

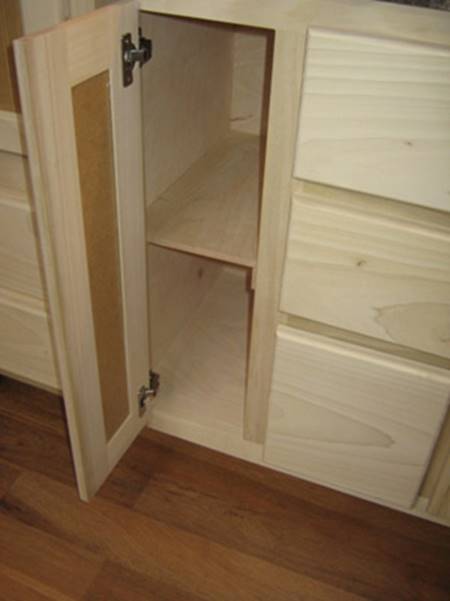

Narrow door in base cabinet. Shelf is removeable.

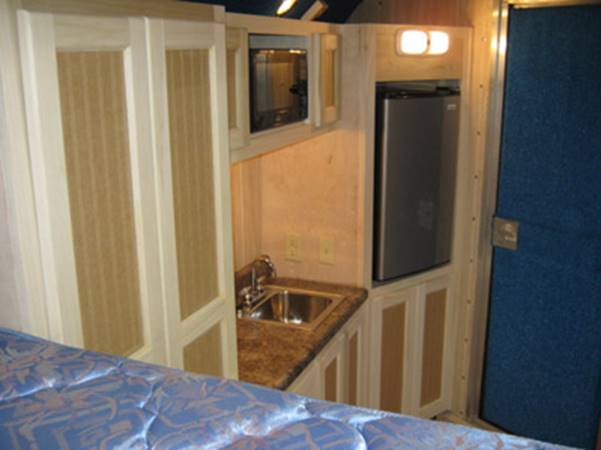

View of cabinets from bed area. Top cabinets have 2 doors and microwave.

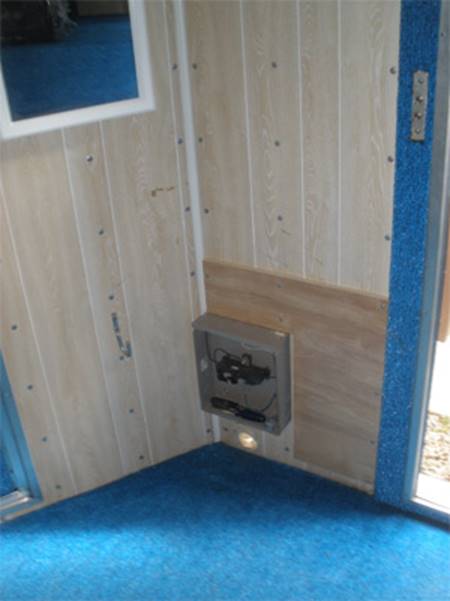

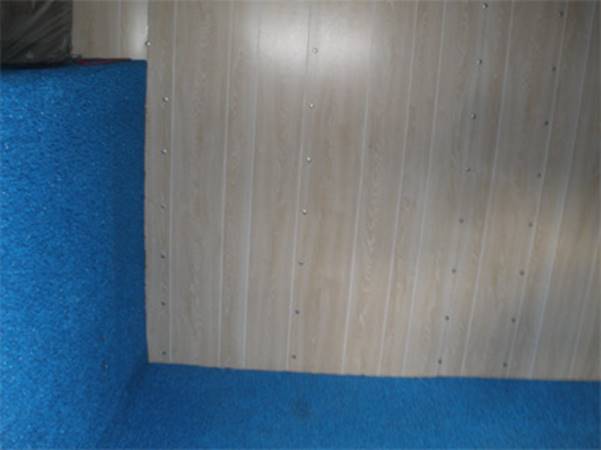

Short wall and floor before.

Swift-lock oak flooring. Table – Cabinet covers switch box and converter box.

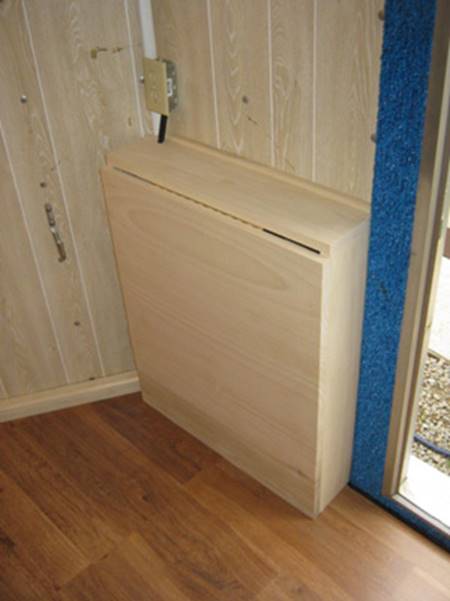

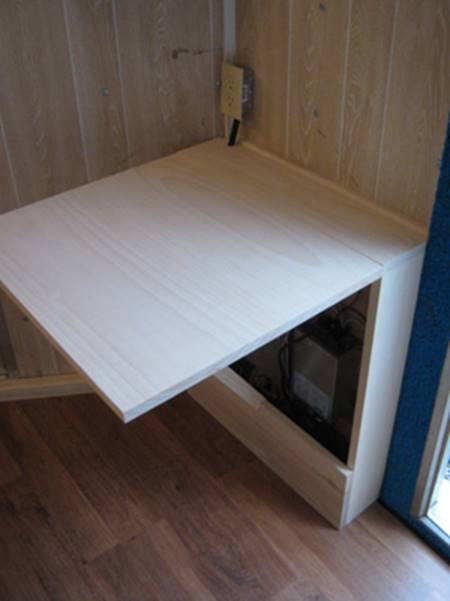

Cabinet that covers electrical boxes makes a table / desk.

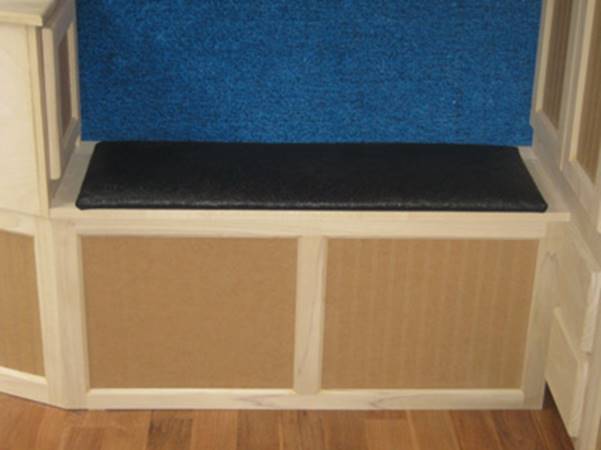

Boot box (front is recessed panel to match doors) with faux leather lid.

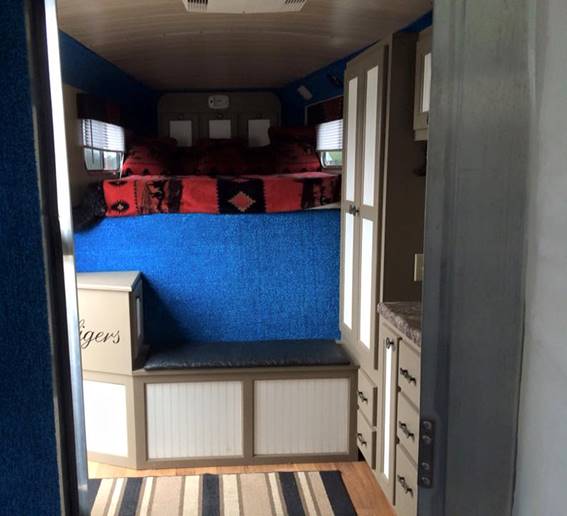

After customer painted cabinets

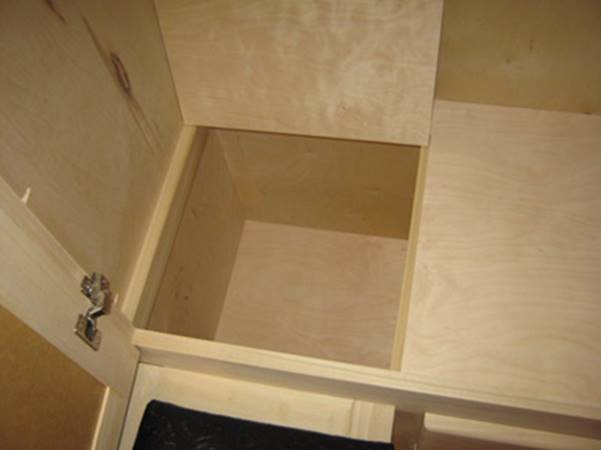

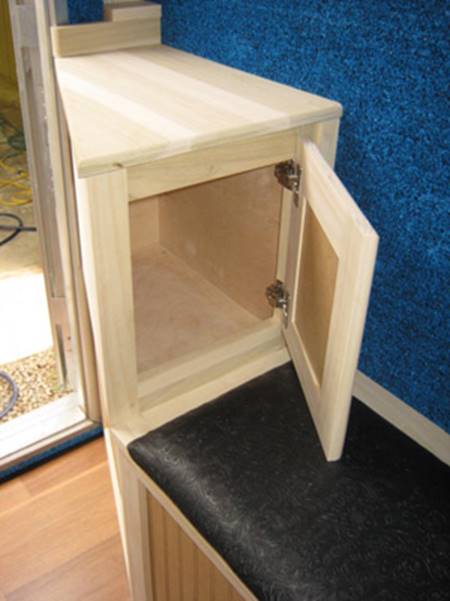

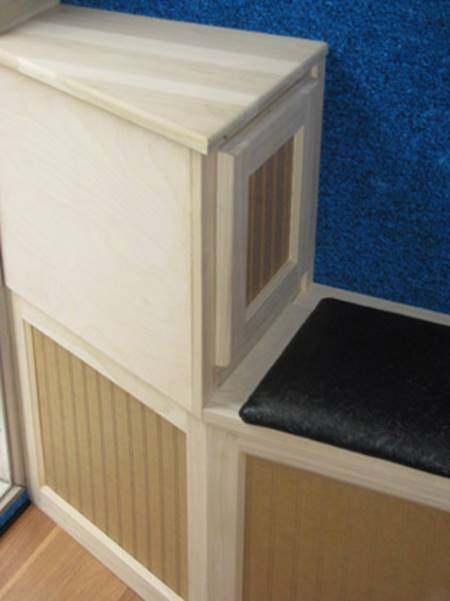

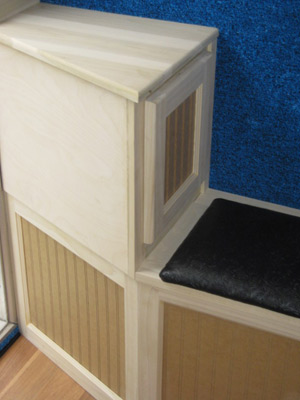

Additional step to access bed area. Step has storage space within.

Step with storage space.

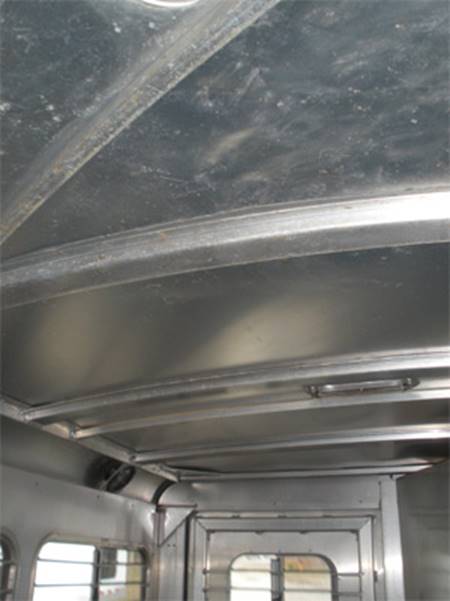

Horse area ceiling before.

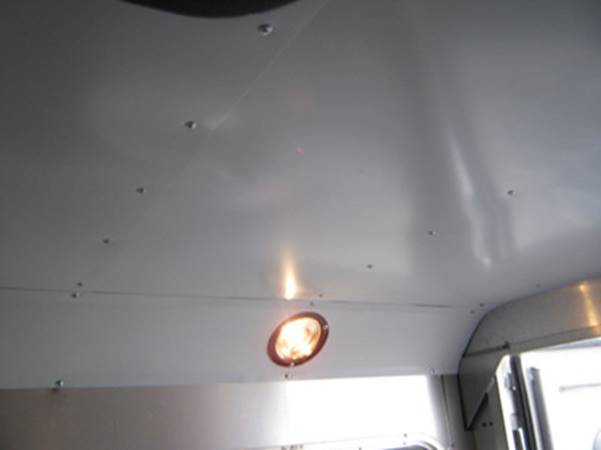

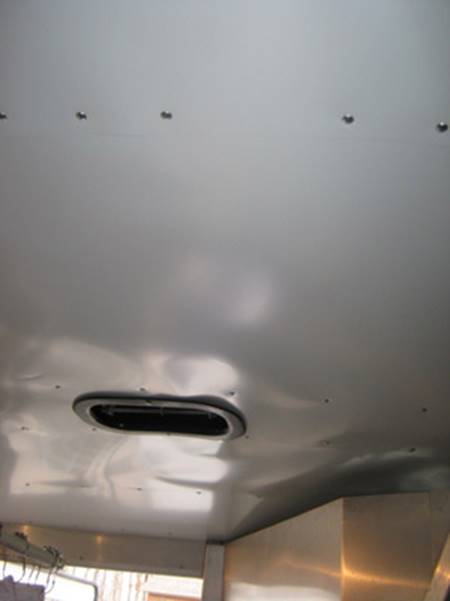

Horse area ceiling after installation and covering with white metal

Corners insulated and covered – lights removed and reinstalled.

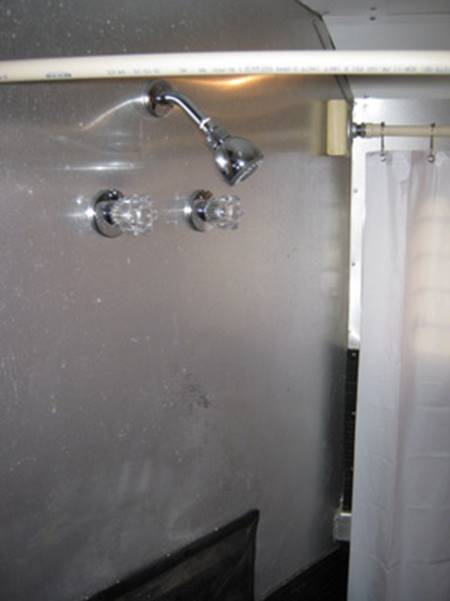

Cowboy shower with removable shower pan and shower curtain.

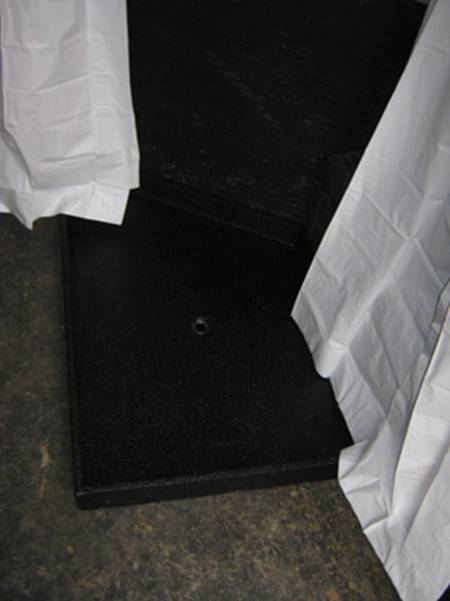

Shower pan made of marine plywood and covered with rubber truck bed liner material.

Shower pan is easily removed and a rubber plug fills the drain hole.

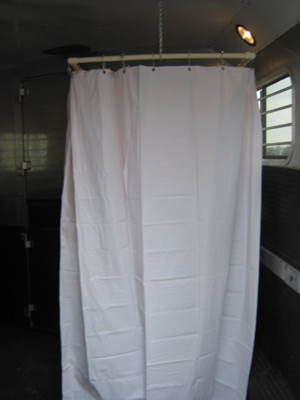

Shower curtain. Easily installed and removed.

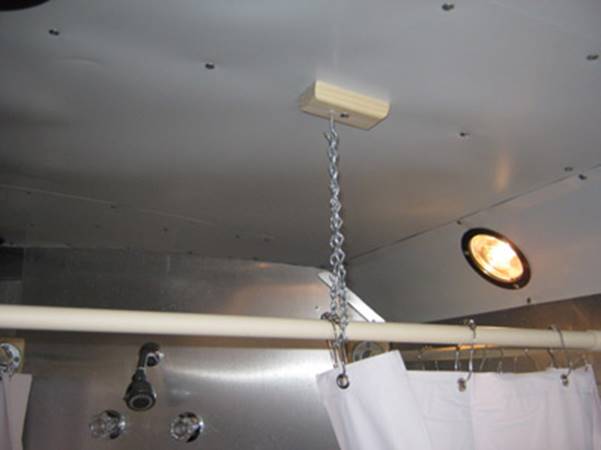

Shower curtain rod
