Cundiff Trailer

Below are pictures of a finished "dresser" area of a horse trailer. This trailer has a 5 ft. short wall. Rader Trim covered the ceiling, covered the floor, covered the walls, wired for 12 volt lights, and built cabinets. The pictures below show that the trailer was already finished. Rader Trim tore out the old cabinets and reworked the whole trailer.

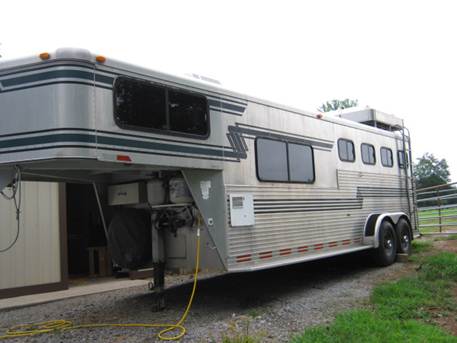

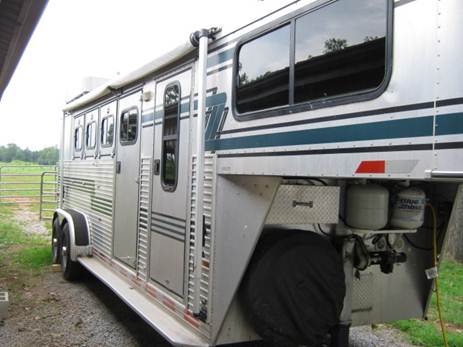

Sundowner 4 horse slant load

Sundowner 4 horse slant load

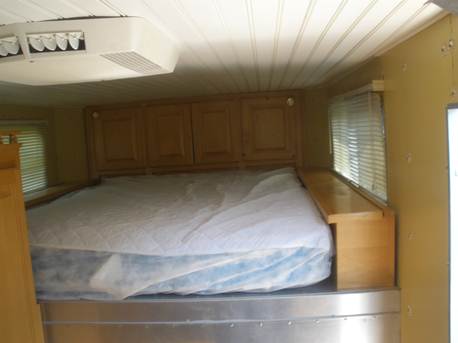

BEFORE: Bed & Nose area as trailer was when brought to Rader Trim

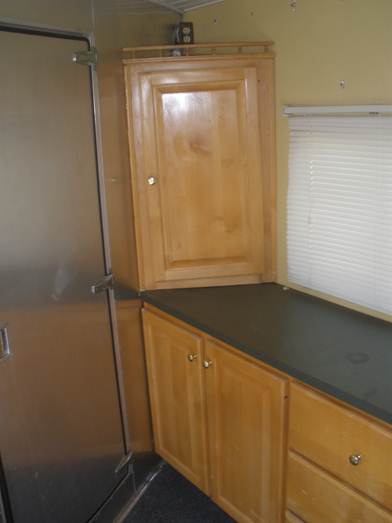

BEFORE: Cabinets on long wall

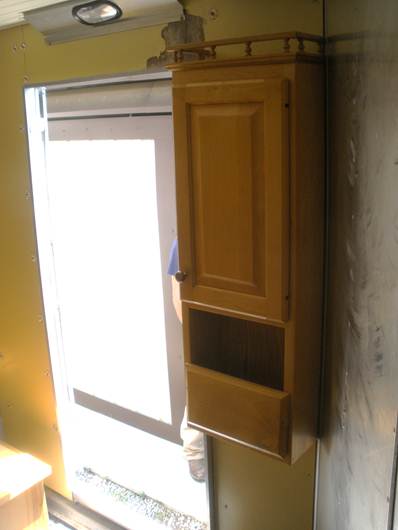

BEFORE: Medicine cabinet

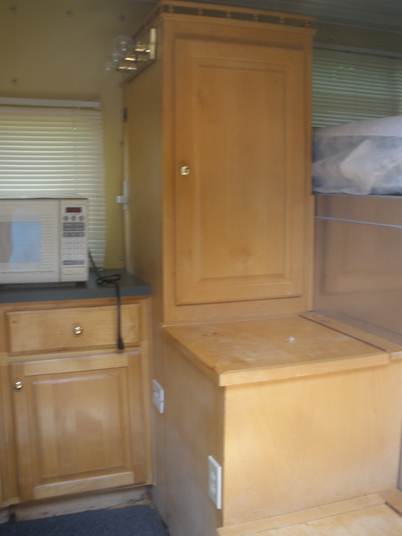

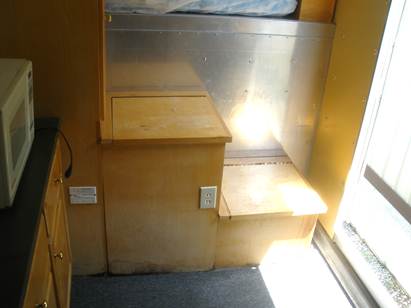

BEFORE: Boot boxes/ Steps





BEFORE: Closet

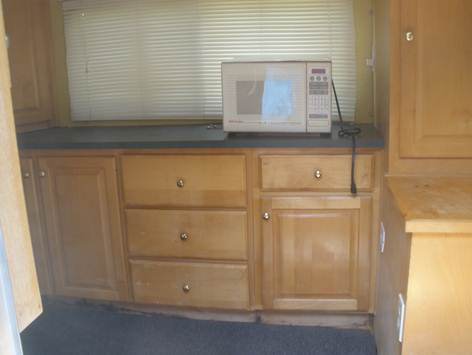

BEFORE: Base Cabinet

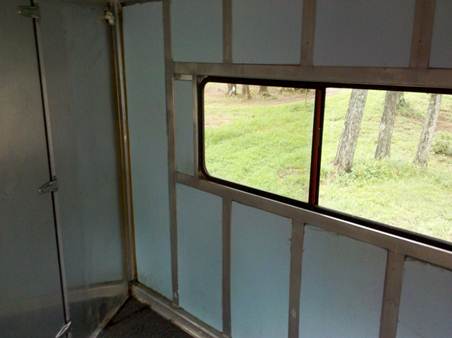

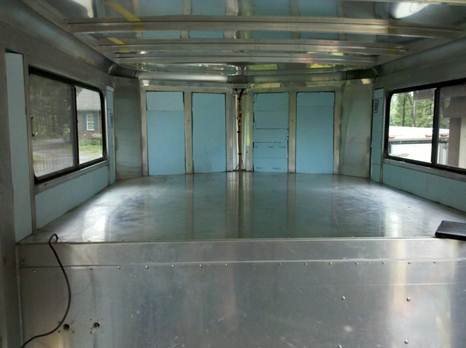

Bare Walls & ceiling after we tore all cabinets, ceiling and wall covering out



Back of long wall after tore cabinets out



Slant wall between outside door and walk-through door

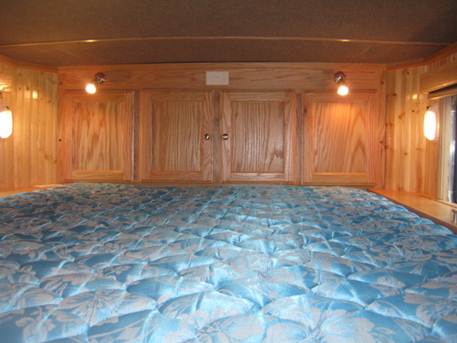

Nose cabinets with reading lights at top. Switch at top is a 3 way switch for ceiling lights

All cabinets are made of oak. Natural finish. All doors are recessed panel.

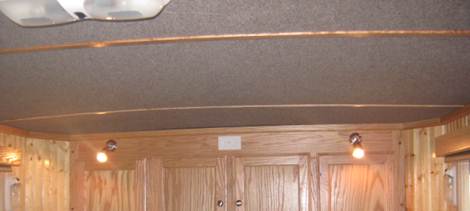

Ceiling covered in carpet and stripped with oak

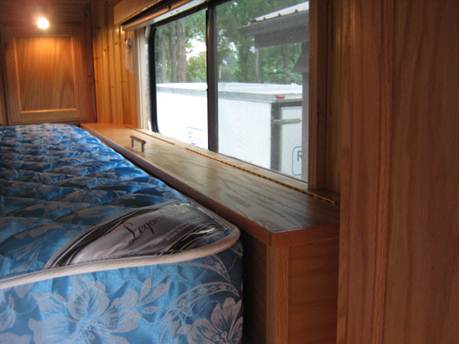

Side boxes by the mattress. One on each side.

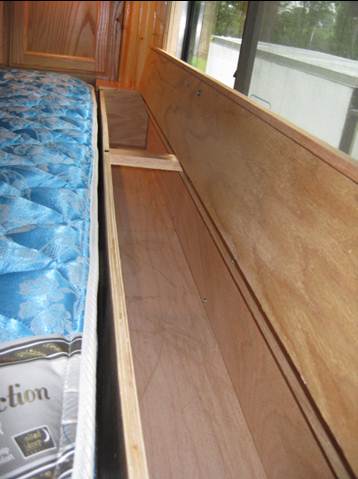

Inside the side boxes

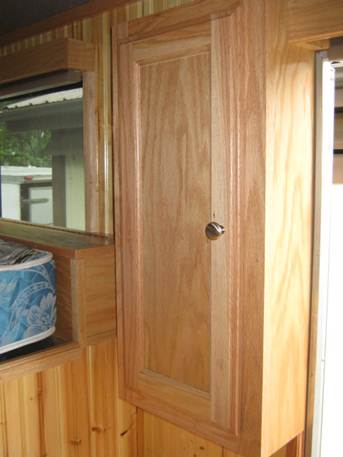

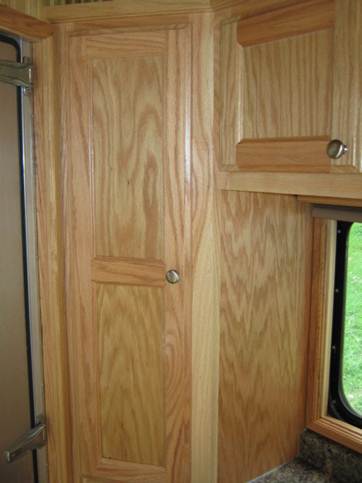

Medicine cabinet to the left of outside door

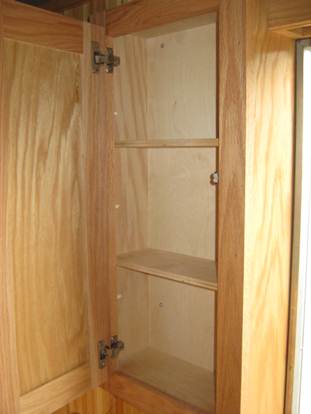

Medicine cabinet

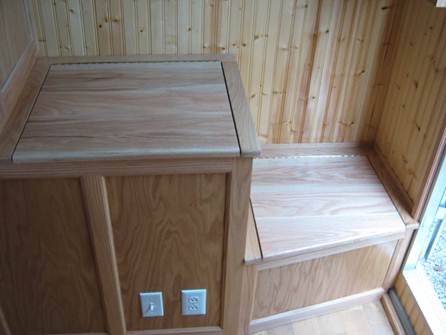

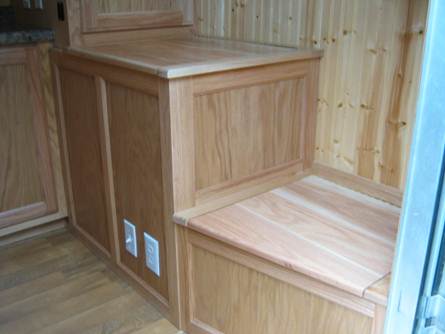

Boot boxes / Steps at bulkhead (16 & 32 inches high)



Boot boxes and steps at bulkhead

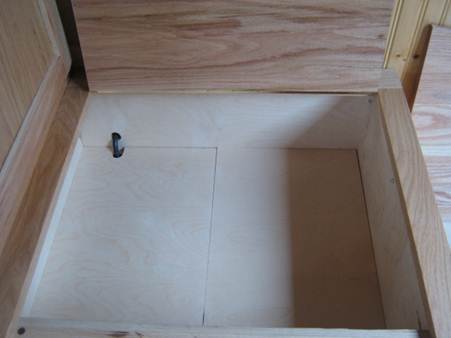

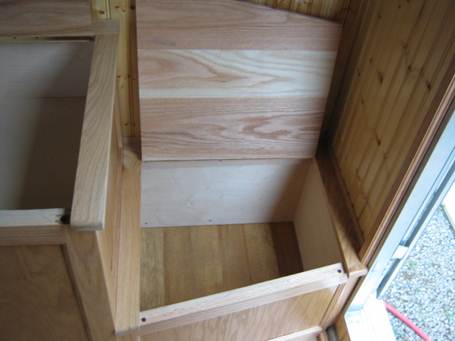

Inside lower boot box



Inside top boot box. Storage bottom removes to have access to tank, pump and wiring

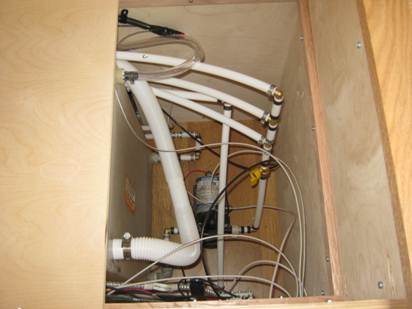

With storage bottom removed to access plumbing and wiring

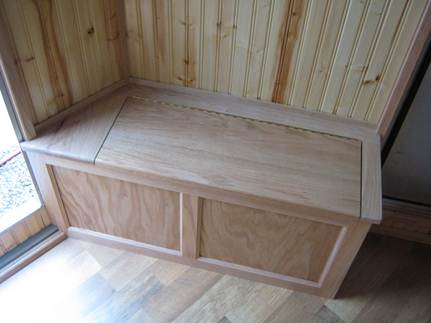

Another boot box between outside door and walkthrough door.

Also notice the tongue & groove pine wall covering.

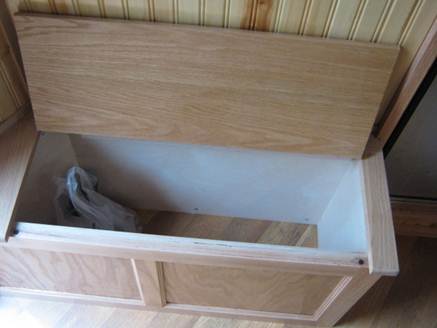

Inside boot box between doors

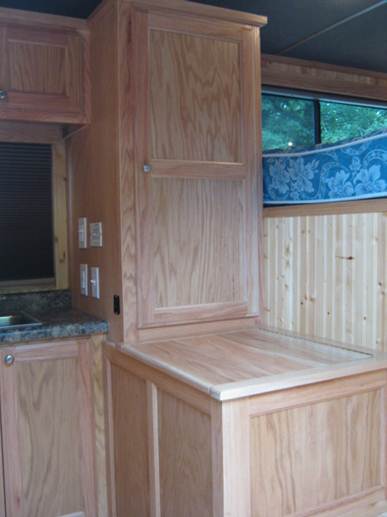

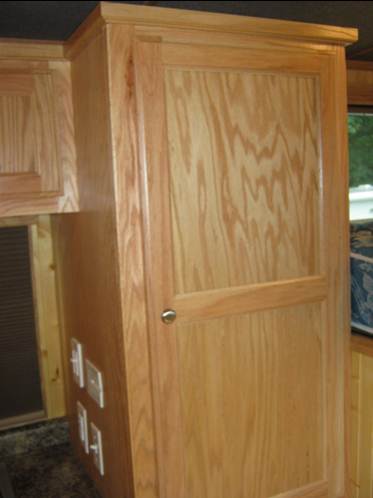

Closet at end of base cabinet at bulkhead



Closet

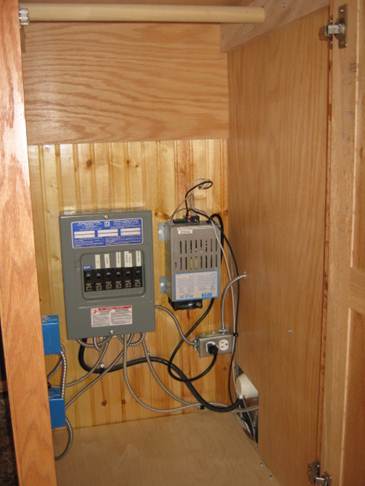

Inside closet breaker box and converter box

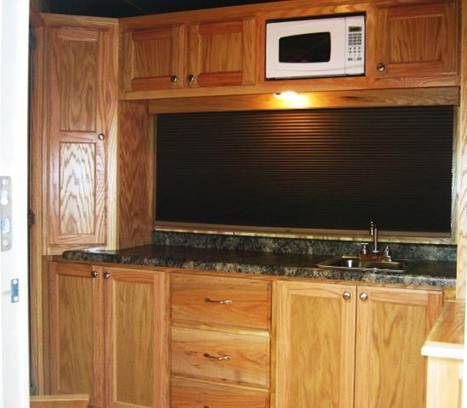

Base cabinet with 4 doors and three drawers.

Top cabinet with microwave.

Cellular (room darkening) shades on all windows & doors

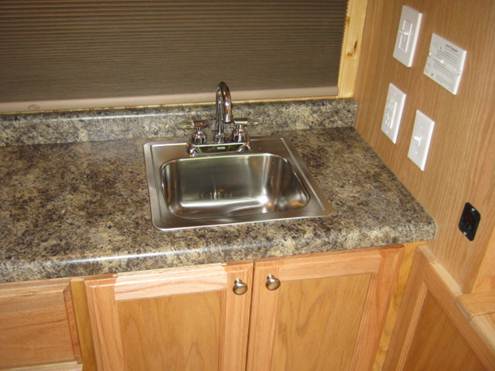

Small sink in base cabinet

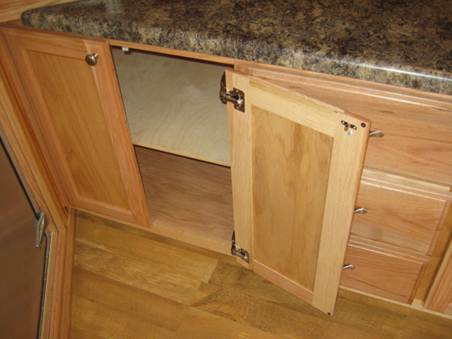

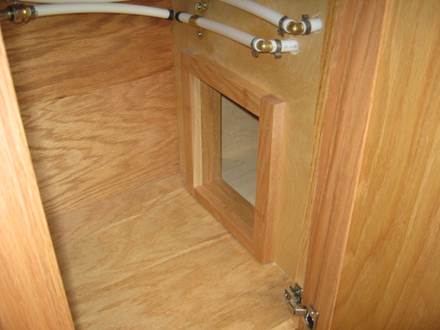

Access to additional storage under the water heater



This door has 170 degree hinge due to slant wall



Corner cabinet at end of long wall.

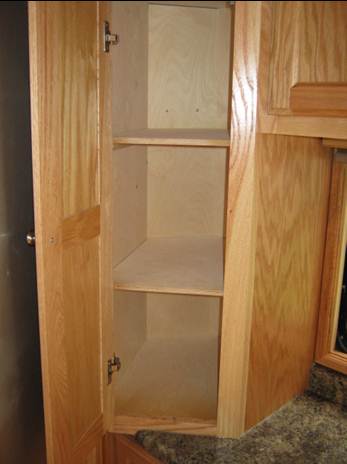

Inside corner cabinet

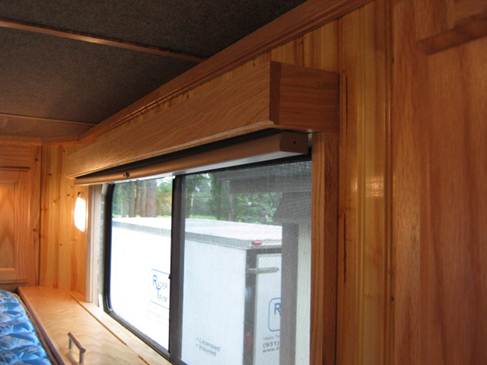

Chase over top of window for cellular (room darkening) blinds

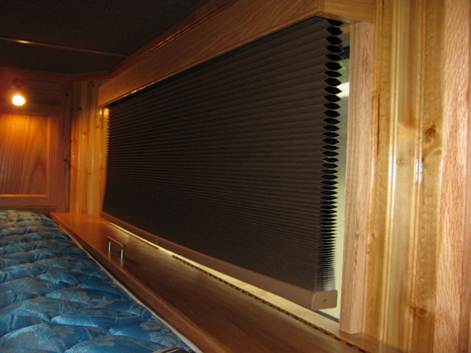

Cellular blinds

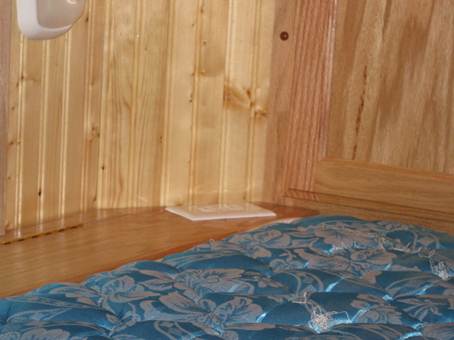

Plug at end of side cabinet near nose cabinet
